Master Touch 8.4 Inch 10 Touch Points Capacitive Touch Foil Screen

  • 1
  • 2
  • 3

Brand Name : Master Touch

Model Number : MST-MCW-TFB-8.4-STM

Place of Origin : Suzhou, Jiangsu, China

Price : negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50000~100000pcs/month

Delivery Time : 5-8days

Packaging Details : 55*14*14cm Paper Tube

Product name : Pcap Touch Foil

Controller : STM

Material : PET Film+OCA+Micro Copper Wire

Touch point : 10

View Area : 8.4 inch (customized)

Application : Shopping Window/Signage/Industrial Touch Panel, etc.

Color : Transparent

Screen Ratio : 4:3

FPC direction : Long side

Contact Now

Master Touch 8.4 Inch 10 Touch Points Capacitive Touch Foil Screen

1. Product Description

MST touch foil adopts capacitive technology, which is a world popular trend for its highest positioning and fast response. Pcap foil screen's response time is shorter than resistive touch screen. Antistatic ability, interface mode diversity, low power, water-proof, fog-proof, beautiful design are MST touch film's good qualities. Our touch foil is usually applied on industrial equipment and POS machine (ATM, self-service terminals, smart home and medical equipment).

2. Technical Datasheet

Part No.: MST-MCW-TFB-8.4-STM
BOM Code: 1.11.084.02.0000
Project Code: M084B
Structure: Film+Micro Copper Wire+Film
Copper Wire Diameter: 15 microns
Base Material: PET Film
Controller IC: STM Series
Driver Type: Driver-free, plug-n-play
Communication Interface: USB2.0/3.0
Working Voltage: 5V
Standard USB Cable Length: 1,500mm
Thru-Glass Capability: Max. 6mm
Screen Ratio: 4:3
Foil Size: 188.45*151.80mm
Active Area: 170.00*130.00mm
Controller Size: 87.0*47.0mm
FPC direction: Long side
Light Transmittance ≧89%
Lamination Method: Wet Lamination (OCA)
Lamination Substrate: Glass/Acrylic/PMMA or other non-metallic material
Inductive method Improved projected capacitive technology
Touch accuracy ±1mm
Touch Points 1~12 points (adjustable)
Calibration method Automatic
Response time <10ms
Frame scan frequency 120FPS
Lifetime 9 Years
Temperature Range -15℃ to + 75℃
Working Environment 0~ 95%RH(Unaffected by condensation)
OS compatibility Windows XP ,Windows 7,Windows 8, Windows10 (32/64 )
MAC OS X Lion
Linux (Kernel version above 3.8)
Above Android 4.0 (Kernel version above 3.1)
EMC EN 61000-6-1:2007, EN 61000-6-3:2007+A1:2011
Power Consumption <0.5W
*This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions:(1)this device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation.

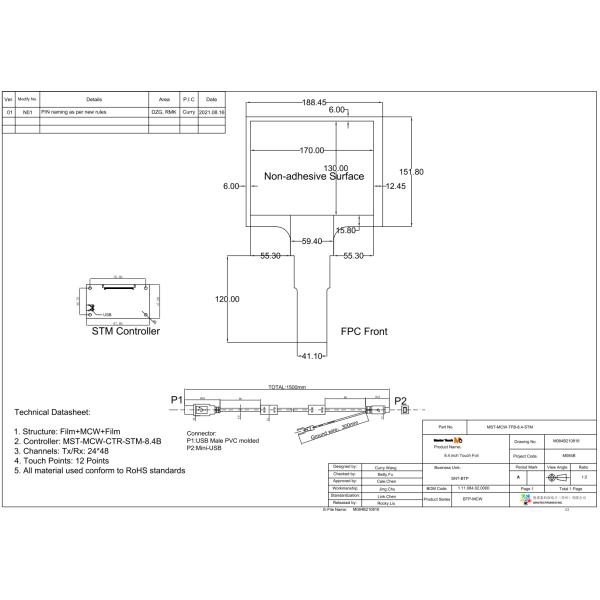

3. Drawing

Master Touch 8.4 Inch 10 Touch Points Capacitive Touch Foil Screen

4. Details

Master Touch 8.4 Inch 10 Touch Points Capacitive Touch Foil Screen

5. STM Controller

Master Touch 8.4 Inch 10 Touch Points Capacitive Touch Foil Screen

6. USB Cable

Master Touch 8.4 Inch 10 Touch Points Capacitive Touch Foil Screen

7. Application

Interactive Shopping Window, Outdoor Digital Signage, Industrial Touch Panel, Interactive Black/White Board

8. How is a touch foil made?

Master Touch 8.4 Inch 10 Touch Points Capacitive Touch Foil Screen

Master Touch 8.4 Inch 10 Touch Points Capacitive Touch Foil Screen

Master Touch 8.4 Inch 10 Touch Points Capacitive Touch Foil Screen

9. FAQ

Master Touch 8.4 Inch 10 Touch Points Capacitive Touch Foil Screen
